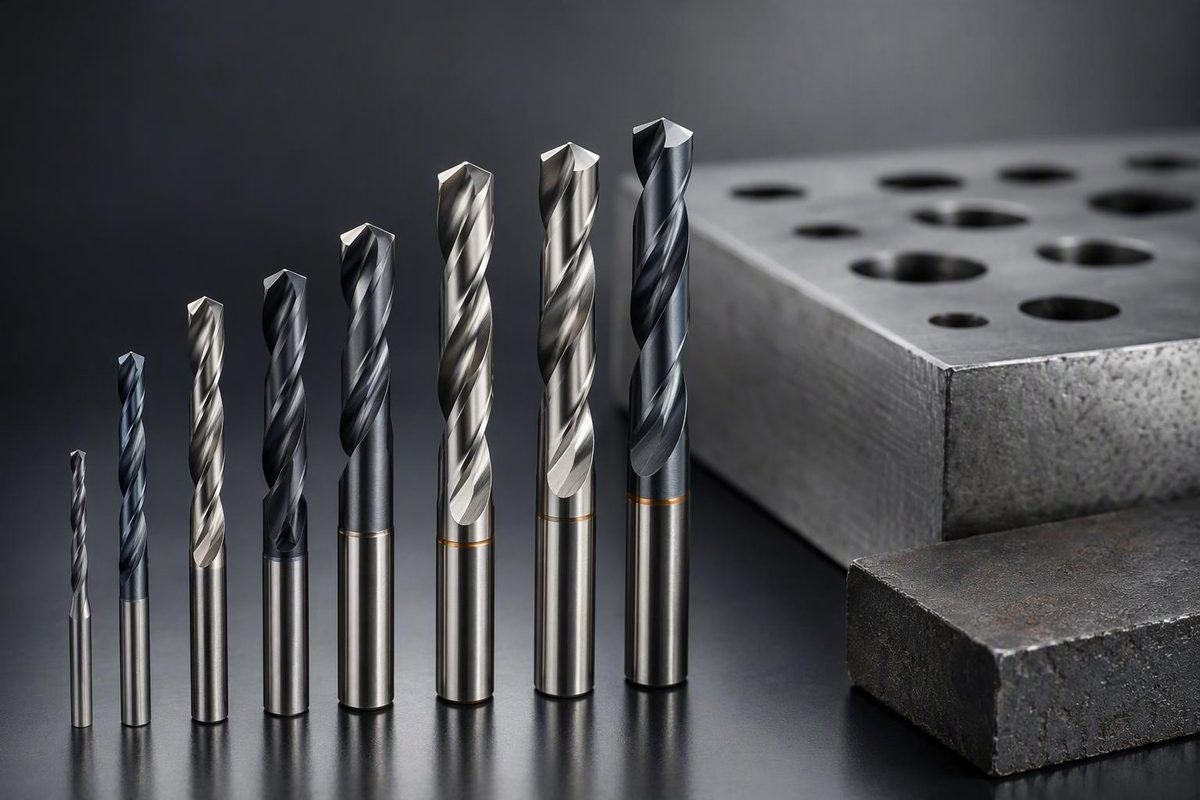

How to Choose and Use a Carbide Drill Without Ruining the Bit or the Part

The short answer: carbide can drill hardened steel, but not every carbide drill can

A purpose-made carbide drill can cut hardened steel. The important qualifier is purpose-made: “carbide” describes the tool material or cutting portion, not automatic suitability for every hardened alloy, hardness level, hole depth, or machine.

Manufacturers sell specialized carbide-tipped die drills, locksmith drills, and broken-fastener drills for this work. Champion markets its CT605 die drill for precision drilling in hardened steel and armor plate and its CT705 locksmith drill for non-precision drilling in hardened steel and broken hardened bolts. Champion states a workpiece range of 48–65 HRC for the CT605; that is a manufacturer rating, not an independently verified guarantee across every alloy and setup. The same manufacturer information lists Item 105, a solid-carbide drill, mainly for abrasive non-ferrous materials such as aluminum, copper, bronze, plastics, and cast iron—not hardened steel. That contrast shows why construction material alone is insufficient when choosing a tool (Champion Item 105 solid-carbide drill listing and related carbide-drill information).

KnKut likewise markets standard- and left-hand carbide-tipped drills for hardened bolts, studs, easy-outs, die sections, and related work. Its category page lists fractional sizes from 1/8 to 1/2 inch and refers to a 48–65 Rockwell C range. Because the wording around that range is potentially ambiguous, treat it as the seller’s stated application range rather than an independent test result, and confirm the rating for the exact part number before ordering (KnKut carbide-tipped hardened-steel drills).

Before selecting a bit, collect six pieces of information:

1. Steel alloy or part type. A tool-steel die, case-hardened shaft, automotive fastener, bearing race, armor plate, and unidentified repair part are not interchangeable.
2. Measured or estimated hardness. Record a measured hardness when available. If it is unknown, tell the supplier what the part is and how it was heat-treated, if known.
3. Case-hardened or through-hardened condition. Penetrating a thin hard surface is a different job from drilling deeply through steel hardened throughout.
4. Hole diameter. Diameter changes tool selection, available flute space, and the cutting data you will need.
5. Hole depth. A shallow access hole and a deep blind hole create different coolant and chip-removal demands.
6. Required tolerance. A rough clearance hole, a nominal drilled hole, and a bore intended for a press-fit pin require different plans.

Then add a seventh factor: the machine. A hand drill, light drill press, rigid mill, and CNC machining center do not provide equivalent alignment, feed control, spindle condition, or coolant delivery. A drill that is plausible in a rigid mill may be a poor choice for a hand-held job where tilting, vibration, or catching is likely.

A useful initial decision looks like this:

• Known hard steel, rigid machine, critical location or finish: investigate a purpose-rated solid-carbide drill or precision carbide-tipped die drill.
• Broken hardened fastener or rough access hole: investigate a specialized carbide-tipped locksmith or fastener drill, including left-hand options where appropriate.
• Flexible or vibration-prone setup: determine whether a capable cobalt HSS drill offers a more tolerant option, or move the work to a more rigid machine.
• Deep, small, precise, or high-value job: compare conventional drilling with EDM, grinding, or professional machining before risking the part.

There is no universally best carbide drill bit for hardened steel. Nor does the available evidence support one RPM, feed, pressure, peck depth, or coolant recipe for all carbide drills and hardened workpieces. Selection must begin with the part, hole, machine, and exact manufacturer documentation—not with a marketplace title.

Know what you are buying: solid carbide, carbide tipped, cobalt, and masonry bits

“Carbide drill” can refer to tools with materially different constructions and intended uses.

A solid-carbide drill is carbide through the cutting portion, body, and shank. Solid carbide is generally associated with high rigidity, low deflection, wear resistance, and controlled machining. Its limitation is brittleness: shock, vibration, excessive mechanical stress, and unintended lateral movement can contribute to cracking or breakage.

A carbide-tipped drill normally has a steel body with a brazed carbide cutting portion. That construction does not make it a masonry bit by definition. Manufacturers can engineer carbide-tipped tools specifically for hardened steel, dies, safes, and broken fasteners. Conversely, a tipped tool designed for brick or concrete does not become a hardened-steel drill merely because both products use carbide at the cutting edge.

A cobalt drill is not a carbide drill. It is an alloyed high-speed-steel tool. HSS is generally more tolerant of shock and vibration than brittle carbide, which may make a capable cobalt drill more suitable in some manual or flexible setups. That does not mean cobalt will cut every hardened workpiece, nor that it is universally better than carbide. The material, geometry, machine stability, and task determine which tradeoff matters. A tool manufacturer’s comparison associates carbide with rigid, controlled machining and HSS with greater tolerance for shock and vibration, although it does not establish a hardened-steel limit for every drill class (Tivoly’s HSS and carbide comparison).

A carbide-tipped masonry bit is designed for a different application. Common masonry designs use a carbide insert brazed into a steel body and are intended for brick, block, or concrete, often with hammering action. Drill Review’s guide to common drill-bit types distinguishes masonry, twist, step, spade, and other bit classes; it does not validate masonry-bit performance in hardened steel.

Some individuals have reported drilling difficult metal with tile, masonry, or multi-material bits. Such reports can illustrate an improvised attempt, but they do not establish alloy, hardness, repeatability, hole quality, or safety for another job. They should not override a manufacturer’s work-material guidance.

Retail categories make the naming problem worse. A single “carbide drills” page may mix:

• Solid-carbide jobber drills
• Stub drills
• Spade drills
• Straight-flute drills
• Coolant-through drills
• Carbide-tipped drills
• Annular cutters
• End mills
• Burrs
• Tools intended primarily for cast iron or non-ferrous materials

These tools are not interchangeable. A burr removes material differently from a twist drill. A straight-flute die drill may be intended for an operation unlike deep-hole drilling.

Before buying, request documentation for the exact series and diameter. Verify:

• The stated work material, including an explicit hardened-steel application
• The workpiece hardness range, if one is published
• Whether the tool is solid carbide or carbide tipped
• The intended point and flute geometry
• The recommended hole type and depth
• Whether it requires standard or reverse rotation
• The permitted machine types
• Cooling, lubrication, and chip-evacuation requirements
• Cutting data for the exact diameter and tool series

If a retailer cannot provide written information about hardness applicability, machine type, coolant method, rotation direction, and drilling-depth or cycle guidance, reject the product for a critical job. Labels such as “tungsten carbide,” “for metal,” “industrial,” and “extra hard” are not adequate specifications.

Solid carbide versus carbide tipped: choose for the setup and the hole

The choice between solid carbide and carbide tipped is not a contest with one permanent winner. It is a matching decision.

Option	Construction	Typical strength	Principal weakness	Preferred environment	Accuracy expectation	Cost direction	Likely applications
Solid carbide	Carbide through the cutting portion, body, and shank	High rigidity, resistance to deflection, wear resistance	Sensitive to shock, vibration, runout, impact, and side loading	Rigid mill or CNC; a sound, accurately aligned drill press where the tool maker permits it	Plausible where controlled accuracy matters, but finished tolerance must still be verified	Often positioned as the higher-purchase-price option; do not infer total value from price	Controlled precision drilling and suitable production or deep-hole systems
Carbide tipped	Steel body with a brazed carbide cutting portion	Specialized geometries are available for hardened steel, dies, safes, and broken fasteners	Performance depends on tip support, joint condition, geometry, heat control, and body condition	Depends on the exact product; some are listed for power drills or drill presses	Ranges from precision die drilling to deliberately non-precision access work	Often marketed below comparable solid-carbide tools, but storefront price does not establish suitability or life	Die drilling, rough access holes, broken-fastener work
Cobalt HSS	Cobalt-alloyed high-speed steel	Greater toughness and tolerance of movement than brittle solid carbide	May wear rapidly or fail to cut if the workpiece exceeds its capability	Manual or less-rigid setups where shock tolerance matters	Suitable only when the work material and required result are within the exact drill’s capability	Commonly presented as a lower-purchase-price category; compare documentation rather than price alone	Tough metals, repair work, flexible setups, and uncertain conditions

The cost directions above are broad commercial positioning, not a prediction of tool life, hole count, cycle time, or total ownership cost. A retailer comparison describes solid carbide as the more costly precision-oriented option and carbide tipped as the less expensive, more forgiving construction, but supplies no hardened-steel comparison tests or hardness limits (retailer guide to solid-carbide and carbide-tipped drills).

Solid carbide is the more plausible choice when the machine can maintain alignment and controlled feed and when resistance to deflection matters. That does not mean a long, delicate solid-carbide drill will tolerate a loose chuck, flexible table, interrupted surface, or hand-held side loading. The rigidity that limits bending also leaves less room to accommodate movement.

Carbide-tipped drills occupy several distinct niches. Purpose-made die drills can target controlled holemaking, while locksmith-style products target rough drilling and broken fasteners. The application statement and geometry matter more than the generic construction name.

Evidence does not justify calling carbide-tipped tools inherently more forgiving. One commercial retailer attributes stress absorption to the steel body. By contrast, participants in an industry forum raised concerns about heat at the brazed joint, wear in the steel body, and declining support behind the carbide tip; other participants reported successful use. Their identities, credentials, and results were not independently verified, and the reports involved different steels, geometries, depths, machines, and coolant systems (Practical Machinist discussion of solid and tipped drills).

Use these criteria instead of a universal ranking:

• Is the exact drill rated for the workpiece material and hardness?
• Is its geometry intended for a new hole, enlargement, die drilling, or fastener removal?
• Can the machine maintain stable alignment and acceptably low runout?
• Is the hole shallow or deep?
• Can the specified coolant reach the cutting edge?
• Can chips escape?
• Does the hole merely need to function, or must it meet controlled size, location, straightness, and finish requirements?
• What happens to the part if the drill chips or breaks?

A short drill generally reduces the opportunity for deflection compared with an unnecessarily long one, but shortness does not make the wrong geometry suitable. A forum participant reported a good result drilling a deep hole with a solid-carbide spot drill, while others questioned whether the spot-drill flute geometry was appropriate for that depth. Treat that as an anecdote, not proof that any spot drill can replace a regular drill.

If the setup allows lateral movement, cobalt may be a more tolerant choice than solid carbide—provided the exact cobalt drill can cut the steel. Otherwise, stop and improve the machine or workholding. A harder cutting material cannot compensate for every mechanical weakness.

Match the drill to the job: precision holes, enlargement, and broken fasteners

Separate the job into one of four categories before shopping.

1. A new precision hole

This is a location, diameter, straightness, and finish problem as well as a material-removal problem. A purpose-made die drill is more relevant than a generic carbide catalog item.

Champion markets the CT605 carbide-tipped die drill for precision drilling in hardened steel and armor plate that it rates at 48–65 HRC. The manufacturer describes straight flutes and a reduced body diameter and instructs users to maintain coolant flow, clear chips frequently, and apply a light feed with steady pressure. These are manufacturer claims and product-family instructions, not independent test results or universal carbide-drilling rules.

Even the term “precision drill” does not guarantee a finished press fit. Nominal drill diameter is not a promise that the bore will meet a particular tolerance, roundness, finish, or location requirement. Machine condition, drill condition, setup, workpiece, depth, and engagement all remain planning variables. Reaming, grinding, boring, or EDM may still be necessary for final sizing.

2. A rough access or clearance hole

When exact diameter and finish are secondary, a purpose-made non-precision drill may be appropriate. Champion describes its CT705 carbide-tipped locksmith drill for non-precision drilling in hardened steel, safes, and broken Grade 5 or Grade 8 bolts. That is a materially different application from producing a controlled die bore.

“Non-precision” should shape expectations. The objective may be to establish access, remove the center of a fastener, or create clearance—not to produce a final bearing or pin fit.

3. Enlarging an existing hole

Enlargement creates engagement and alignment conditions different from drilling solid material.

Securely position the part and verify that the selected tool is approved for enlargement. Do not assume that parameters for drilling from solid transfer directly to opening an existing hole. Depending on the required size and finish, a manufacturer-approved reamer, grinding operation, boring process, or EDM may offer better control.

4. A broken hardened bolt, stud, or easy-out

This is an extraction job containing a drilling operation. The surrounding threads, part value, fastener position, and presence of another hardened fragment matter as much as the nominal fastener grade.

KnKut markets standard- and left-hand carbide-tipped drills for hardened bolts, broken studs, and snapped easy-outs. Its listed fractional range runs from 1/8 to 1/2 inch. A left-hand drill cuts in reverse rotation; during drilling, reverse torque may help loosen a fastener that is already able to turn. Extraction is a possible secondary outcome, not a promise.

Before attempting removal, ask:

• Can the work be clamped and aligned accurately?
• Is there enough suitable surface to begin the hole?
• How valuable are the original threads?
• Can the fastener center be located without damaging the surrounding part?
• Is an easy-out or another hardened fragment embedded in the fastener?
• What is the recovery plan if carbide breaks in the hole?

If losing the original threads or trapping carbide would make the component unusable, professional EDM removal may be less costly than escalating through several improvised attempts.

Machine and setup requirements that protect a brittle carbide edge

Carbide combines wear and heat resistance with brittleness. It can retain an edge under demanding cutting conditions yet crack or break under shock, vibration, or excessive mechanical stress. Tool-manufacturer guidance specifically associates carbide with rigid, controlled machining and warns about shock- and vibration-related failure (Tivoly’s comparison of carbide and HSS operating environments).

Hand drill

Hand drilling is not categorically impossible, but it is the least controlled environment considered here. The operator must maintain the tool axis while controlling feed, and unintended tilting or movement can load a brittle tool unfavorably.

Solid carbide is therefore a high-risk choice when the drill can wander, tilt, or catch. A specialized tipped product explicitly listed for power-drill use may be more plausible, but its instructions still govern. Slow rotation alone does not make an unstable setup suitable.

Drill press

A drill press can improve alignment and feed control, but only if the machine and workholding are sound. Before using carbide, check for:

• A securely clamped workpiece
• A vise or fixture secured to the table
• A sound spindle, arbor, and chuck
• Minimal unwanted quill or table movement
• Suitable table-to-spindle alignment
• The shortest suitable drill
• Minimal tool projection
• A stable entry condition
• A way to deliver the specified coolant and remove chips

A light or worn drill press may still permit vibration or movement. The presence of a column and quill does not make every press suitable for every carbide tool.

Rigid mill or CNC machine

That makes it the preferred environment for many solid-carbide applications. Rigidity alone, however, does not solve poor coolant access, inadequate chip evacuation, excessive runout, or unsuitable tool geometry.

Use this setup checklist before starting:

1. Immobilize the workpiece with a suitable vise, fixture, or clamping method.
2. Minimize tool projection and unnecessary holder extension.
3. Inspect the cutting edge for visible damage.
4. Verify standard or reverse rotation.
5. Check alignment and obvious spindle, holder, or tool runout.
6. Confirm that the selected drill is intended for the entry condition.
7. Arrange the coolant or lubricant method specified for the drill.
8. Plan how chips will leave a blind or deep hole.
9. Use guarding and suitable eye or face protection.
10. Keep hands out of the cutting zone and stop the machine before inspection or chip clearing.

Champion instructs CT605 users to maintain constant coolant flow, clear chips frequently, and apply a light feed with steady pressure. Those directions apply to that product family; they are not a universal recipe for every solid-carbide, tipped, coated, or coolant-through drill. Champion also warns that cutting tools may shatter and directs users to wear appropriate safety equipment (Champion carbide-drill information and cutting-tool warning).

Do not hold the workpiece by hand. Secure workholding and appropriate protective equipment are essential because a workpiece can move and a damaged carbide cutter can produce fragments. Keep the operator’s hands and unprotected eyes away from the cutting zone.

Speed, feed, coolant, and chip control: use product-specific data

There is no defensible universal answer to “What RPM should I use for carbide in hardened steel?” The same applies to feed rate, hand pressure, peck depth, lubricant, and coolant flow.

Correct parameters depend on:

• Exact drill diameter
• Solid or tipped construction
• Carbide grade
• Coating, if any
• Point and flute geometry
• Workpiece alloy
• Measured or stated hardness
• Case depth or through-hardening
• Blind or through-hole geometry
• Hole depth
• Entry and breakthrough conditions
• Toolholder and spindle condition
• Machine rigidity and feed control
• Flood, external, or through-coolant delivery
• The manufacturer’s intended cutting strategy

Obtain cutting data for the exact tool series and diameter. Ask the manufacturer or authorized supplier for the applicable hardness range, permitted machine, coolant method, rotation direction, maximum drilling depth or cycle guidance, and speed-and-feed data in writing. If those details are unavailable, do not use the product for a critical job.

Some operating principles are broadly useful:

• Maintain controlled engagement rather than bouncing the edge against the work.
• Use the tool maker’s feed guidance rather than uncontrolled force.
• Remove chips before they pack in the flutes or bottom of the hole.
• Follow the specified cooling method from the beginning of the cut.
• Stop if chip formation, sound, resistance, or tool condition changes materially.

If the drill rubs or polishes the surface without producing chips, stop. Do not keep adding pressure in the hope that a brittle edge will suddenly begin cutting. Check rotation direction, edge condition, alignment, runout, workpiece hardness, tool rating, and the manufacturer’s operating data.

Cooling methods are not interchangeable:

• Lubrication is intended to reduce friction but does not necessarily provide the heat removal of a sustained coolant stream.
• Flood or constant coolant supplies continuing fluid around the cutting zone when access permits.
• Through-coolant tooling directs coolant internally toward the cutting edges and may assist chip movement in deep holes.
• Compressed air may move chips in an approved process but does not replace liquid coolant when the tool requires it.
• Periodic rests are an anecdotal manual practice, not a substitute for a manufacturer-specified coolant system.

One forum user reported enlarging three holes in an unidentified knife tang with carbide-tipped masonry or multi-material bits in a drill press. The user reported 2,100 RPM, 3-in-1 oil, periodic rests, and about 15 minutes for the three holes. The steel alloy, hardness, exact bit design, feed, and temperature were unknown, so this is not a recommended setting (Dallas Makerspace knife-tang discussion).

Treat advice to anneal or locally heat the workpiece with similar caution. If changing the metallurgy is acceptable, it should be treated as a separate, controlled process—not an improvised workaround for an unsuitable drill.

Deep holes and tight tolerances raise the risk

Depth-to-diameter ratio is a useful planning concept: compare the hole depth with its diameter. The evidence does not establish one universal ratio at which conventional drilling becomes unsuitable.

Deeper holes increase the importance of:

• Straight initial alignment
• Tool rigidity
• Holder and spindle condition
• Coolant reaching the cutting edge
• Chips leaving the hole
• Avoiding flute packing
• Detecting edge damage early
• Planning recovery if the tool breaks

A shallow pass through a hardened surface does not prove that the same tool can make a deep hole through fully hardened steel. In one forum discussion, a participant reported drilling through induction-hardened layers about 1–2 mm deep and stated that the layers were 55–60 HRC. That report concerns a shallow hard layer followed by a different underlying condition, not a deep hole through measured, fully hardened steel.

The same discussion began with a proposed hole about 1.25 inches deep in hardened carbon steel on a CNC mill without through-coolant. The intended finished diameter was 0.1965 inch for a press-fit pin, but neither measured hardness nor confirmed hardening depth was available. Participants therefore asked about diameter, hardness, hardening depth, accuracy, and machine details before suggesting parameters; several raised EDM as an alternative. The thread did not establish a proven feed or speed for the job (Practical Machinist deep-hole hardened-steel scenario).

Withdrawal or short pecks may help chip clearing in some applications, but the exact cycle must come from the drill manufacturer and machine context. An improvised cycle can change how the edge re-engages the work or how chips remain in the hole. Do not copy a fixed peck depth from an unrelated tool or forum account.

The evidence does not support a universal depth at which through-coolant becomes mandatory. That boundary must come from the tool maker’s application limits and the actual setup.

For a press fit, bearing location, dowel, or other critical bore, separate two operations:

1. Create a safe preliminary hole.
2. Finish the bore to the required size, location, roundness, and surface condition.

A drill marked with the nominal final size does not guarantee a fit-ready bore.

Escalate to a qualified machine shop when:

• The part is expensive or difficult to replace.
• Hardness or hardening depth is unknown.
• The hole is deep relative to its diameter.
• Location, size, or fit is critical.
• The available machine has questionable rigidity or runout.
• The specified coolant cannot reach the cutting zone.
• A broken carbide fragment would make recovery impractical.

Compare professional machining with the complete cost of failure, not merely the purchase price of one drill.

Troubleshooting: what the drill is telling you

Treat the following table as a diagnostic framework, not a replacement for product-specific instructions. Carbide can chip or break under impact, excessive pressure, vibration, or misuse, so stop the machine before inspection and keep hands and unprotected eyes away from the cutting zone (carbide handling and breakage cautions).

Symptom	Possible contributors	Responsible response
Skidding or wandering	Unsuitable point geometry, damaged edge, excessive projection, poor alignment, unstable entry, spindle or chuck movement	Stop; verify tool rating and geometry, inspect the edge, and reassess alignment, workholding, projection, and spindle condition
Rubbing without cutting	Wrong rotation, damaged or unsuitable edge, excessive runout, incorrect cutting data, workpiece beyond the stated range	Stop rather than adding pressure; confirm direction, condition, hardness applicability, and manufacturer data
Chatter	Flexible workholding, machine movement, excessive projection, misalignment, interrupted engagement, unstable feed	Improve rigidity and alignment; reassess whether the machine is suitable for the selected carbide tool
Edge chipping	Shock, vibration, runout, interrupted engagement, trapped chips, excessive mechanical stress	Stop and inspect the tool and hole; identify the setup or application problem before installing another drill
Body breakage	Side loading, catching, severe misalignment, packed chips, excessive projection, unstable hand drilling	Do not repeat the operation unchanged; plan safe fragment recovery and redesign the setup
Packed flutes or rising resistance	Inadequate chip evacuation, unsuitable cycle, depth beyond the coolant or tool guidance	Stop and clear chips using the manufacturer’s approved procedure; do not force the drill deeper
Overheating	Poor coolant access, rubbing, damaged edge, chip packing, unsuitable parameters	Stop and diagnose whether the specified cooling method is reaching the cut
Poor finish or oversize hole	Runout, deflection, edge damage, chatter, unsuitable geometry, inadequate finishing strategy	Measure the result, inspect the setup, and plan a separate finishing operation if required

Wandering is not proof that the drill needs more pressure. Pressure applied while the edge is off-center or poorly supported may worsen damage. Verify whether the drill is intended to start on the available surface and whether the machine and fixture can hold its position.

Rubbing without chips is a stop signal. Check the tool rather than continuing to polish the same area and generate more heat.

Chatter and repeated chipping suggest a system or application problem. Possible contributors include excessive projection, unstable workholding, spindle runout, machine movement, misalignment, vibration, interrupted engagement, or a drill not rated for the material.

Brittle carbide is sensitive to shock, but the evidence does not support one universal corrective feed. Consult the exact tool manufacturer before the cut reaches such a condition.

Stop work when:

• The edge chips repeatedly.
• The drill cannot form chips.
• Resistance rises while chips stop escaping.
• The workpiece or fixture moves.
• The spindle, chuck, or holder is visibly unstable.
• The cutting edge shows damage.
• The process is increasingly likely to trap carbide in a valuable component.
• The operator cannot remain clear of the cutting and fragment zone.

Shut the machine down before measuring, clearing material, or inspecting the hole.

When not to drill: alternatives and a final buying checklist

Conventional drilling is not always the safest or least expensive route. It can also be appropriate when removing a hardened fragment while preserving surrounding material is more important than minimizing immediate expense.

Other possible processes include:

• Grinding, where access and geometry permit controlled abrasive removal
• Carbide burrs, for rough access or local enlargement rather than a precision cylindrical hole
• Diamond abrasion, where a suitable abrasive tool and cooling method are available
• Waterjet cutting, when part geometry and required hole form suit the process
• Reaming or jig grinding, after a preliminary hole has been created
• Professional fastener-removal EDM, when preserving surrounding threads is critical

These alternatives have limitations. EDM may require outsourcing. Compare the processes by geometry, access, dimensional requirements, finish, heat sensitivity, equipment, and consequences of failure.

Granite-tile and masonry-bit success stories belong in the category of emergency-method anecdotes, not standard purchasing guidance. One automotive article describes a single 1/8-inch hole made in a hardened shift-lever remnant with an unidentified granite-tile bit and a variable-speed hand drill. The alloy, Rockwell hardness, exact bit composition, RPM, feed, hole quality, and repeatability were not established (granite-tile-bit case study).

Use this final checklist before buying carbide drill bits for hardened steel.

Workpiece

• Do I know the alloy or at least the part type?
• Is hardness measured, estimated, or unknown?
• Is the steel case hardened or through hardened?
• Is there an interrupted surface, existing hole, or embedded tool fragment?

Task

• Am I making a precision die hole?
• Am I making a rough access hole?
• Am I enlarging an existing opening?
• Am I drilling a bolt, stud, or easy-out?
• Do I need standard or reverse rotation?

Tool

• Does the manufacturer explicitly state “hardened steel” for this exact series?
• Is a relevant workpiece hardness range published?
• Is the tool solid carbide or carbide tipped?
• Is its geometry intended for this operation?
• Is the diameter appropriate for the preliminary or finished operation?
• Is the flute length sufficient without unnecessary projection?
• Is it approved for the available machine?
• Is exact-series and exact-diameter cutting data available?

Machine and process

• Can the part be clamped securely?
• Is the spindle and holder condition suitable for brittle carbide?
• Can the machine maintain alignment and controlled feed?
• Can the specified lubricant or coolant be delivered?
• Can chips be evacuated at the planned depth?
• Can the required rotation direction be used?
• What is the recovery plan if the drill breaks?

Accuracy and economics

• Is drilling the final operation, or will the hole need reaming, grinding, boring, or EDM?
• What happens if the hole wanders or finishes oversize?
• What is the replacement value of the component?
• Is outsourcing less costly than risking the part?
• Am I judging the tool by documentation and suitability rather than price alone?

Do not infer tool life, hole count, accuracy, or value from price. If hardness, hardening depth, machine compatibility, or required cutting data remains unknown, pause and consult the tool manufacturer or a qualified machine shop.

Choose from the workpiece and setup outward, not from the word “carbide” inward. Verify that the exact drill is rated for hardened steel and the relevant task, then use secure workholding, adequate rigidity, manufacturer-specific cutting data, cooling, and chip control. If the machine cannot keep brittle carbide aligned—or the hole is deep, precise, or located in a valuable part—EDM, grinding, or professional machining may be the safer and less costly decision.

What type of carbide drill bit is best for hardened steel?

There is no universally best type. For rigid, controlled machining where accuracy and resistance to deflection matter, a purpose-rated solid-carbide drill may be appropriate. A specialized carbide-tipped die drill may suit precision hardened-steel work, while a locksmith or broken-fastener drill may be better for rough access.

Choose according to the manufacturer’s stated work material and hardness range, hole geometry and depth, required tolerance, machine rigidity, coolant access, and chip-evacuation plan. Do not substitute a generic solid-carbide drill intended for non-ferrous materials.

Can I drill hardened steel with a carbide bit in a hand drill?

Possibly, but a hand drill makes alignment and controlled loading difficult. Solid carbide is especially vulnerable when the drill can tilt, catch, chatter, or receive side loading. Slow rotation alone does not make an unstable setup suitable.

Use a hand drill only when the exact tool is approved for it, the workpiece can be securely immobilized, alignment can be maintained, and the manufacturer’s operating and cooling requirements can be followed. Otherwise, use a suitable drill press or mill, or outsource the job.

What RPM should I use for a carbide drill in hardened steel?

Use the RPM specified by the manufacturer for the exact drill series, diameter, workpiece material, hardness, hole depth, machine, and coolant method. There is no reliable universal RPM for all carbide drills in hardened steel.

Do not copy a speed from a different diameter, masonry bit, forum anecdote, or coolant-through CNC tool. If the manufacturer provides no usable cutting data, request it in writing or reject the product for a critical job.

Are carbide-tipped masonry or tile bits suitable for hardened steel?

They are not standard substitutes for purpose-made hardened-steel drills. Masonry and tile bits are designed for different materials and engagement conditions. Isolated users have reported success on individual metal parts, but those anecdotes usually lack confirmed alloy, hardness, repeatability, dimensional results, and safety data.

For planned work, buy a drill whose manufacturer explicitly lists hardened steel and the relevant task. Treat a masonry- or tile-bit attempt as an improvised method with uncertain results, not proof of general suitability.

Can a left-hand carbide drill remove a broken hardened bolt or easy-out?

It may help. A left-hand carbide-tipped drill cuts under reverse rotation, so drilling torque can sometimes loosen a fastener while material is being removed. Extraction is not guaranteed.

If the surrounding threads or component are valuable, consider professional removal before risking a broken carbide fragment in the part.
