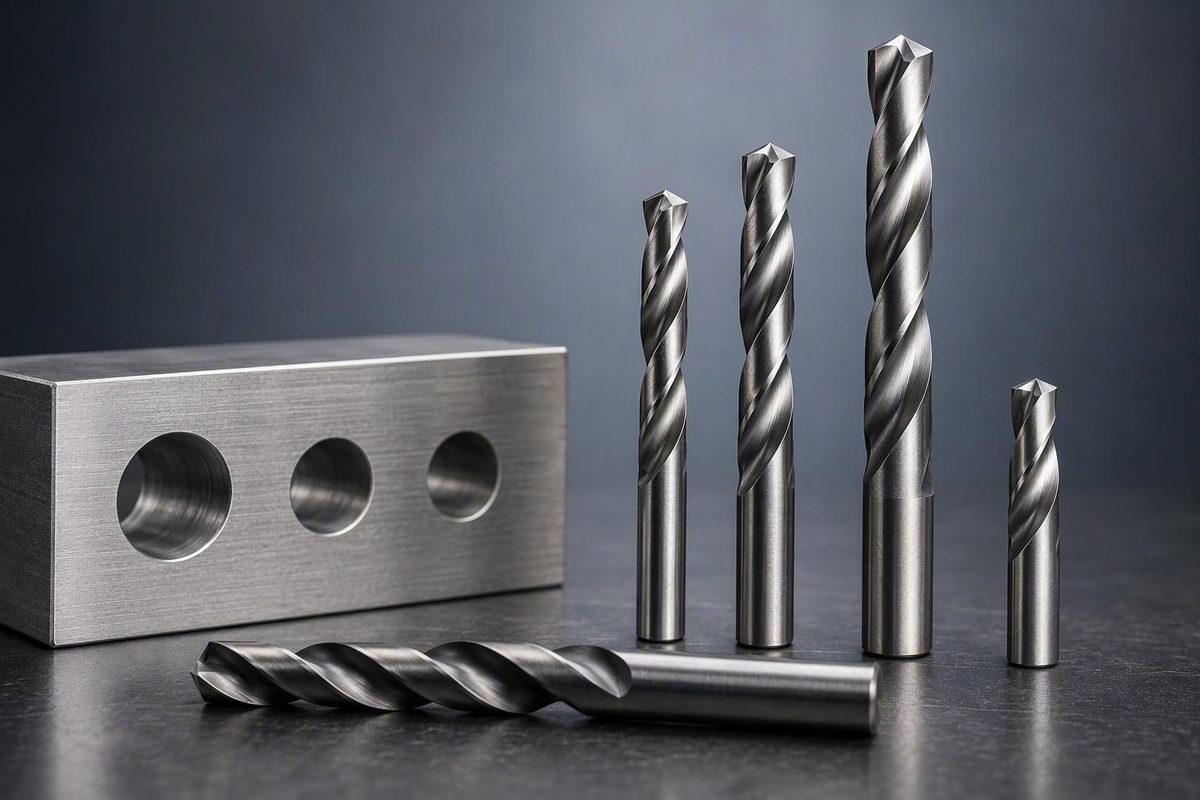

How to Match a Carbide Drill to Hard Steel Without Breaking the Bit

By Ray Kowalski · · 23 min read

Carbide can drill hardened steel when the exact drill is designed for that application. The word “carbide” alone does not establish that a tool will cut your alloy, tolerate its hardness, produce the required hole, or survive the available machine.

Successful selection starts with four questions:

  1. What steel and hardness are you drilling?
  2. What kind of hole must you produce?
  3. Which drill is explicitly rated for that work?
  4. Can your machine hold the drill and workpiece rigidly and in alignment?

This distinction matters because carbide is hard and wear-resistant but comparatively brittle. In a stable setup, a suitable cutting edge can penetrate material that rapidly wears ordinary drills. Expose the same tool to wobble, chatter, shock, or side loading, and it may chip before completing the first hole.

This is therefore a pre-purchase and process-control guide—not a universal product ranking. The available manufacturer pages do not provide complete, diameter-specific feeds, depth limits, holder requirements, and tolerance data for every buying scenario. Those details must come from the technical information for the exact drill being considered.

Start With the Steel and the Hole, Not the Carbide Label

Before shopping for carbide drill bits for drilling hardened steel, create a short job worksheet. Do not begin with a brand, price, review score, assortment size, or retailer category.

Question What to record Why it affects selection
Material Known steel grade or best-supported identification Hardened carbon steel, tool steel, armor plate, and hardened stainless steel are not interchangeable
Hardness Measured or credibly estimated Rockwell C hardness A drill’s stated application may stop below the workpiece hardness
Diameter Finished diameter and acceptable variation Diameter affects spindle speed, load, rigidity, and product availability
Depth Required depth and available clearance Deeper holes need adequate flute capacity and an approved chip-clearing method
Hole type Through-hole or blind hole Breakthrough and bottom clearance create different process risks
Accuracy Rough removal, ordinary fit, or close tolerance A repair drill may remove material without producing a precision hole
Surface Flat, curved, scaled, coated, damaged, or interrupted Uneven entry can make the drill skid or engage asymmetrically
Operation New hole or enlargement of an existing hole Enlargement can load only part of the cutting edge
Equipment Handheld drill, drill press, mill, or CNC machine Different carbide constructions demand different levels of stability
Workholding Vise, fixture, clamps, support, or guide The work must not move, rotate, lift, or flex

If the grade is unknown, investigate how the part was made and used. For a critical component, material documentation or testing is more useful than guesswork.

Keep broad material descriptions separate. Hardened knife steel may machine differently from a carbon-steel die, armor plate, or hardened stainless component.

When comparing products, look for:

  • An explicit hardened-ferrous-material application
  • A stated HRC range, where available
  • The steel families or grades covered
  • Approved machines and toolholders
  • Maximum drilling depth or flute limitations
  • Starting-hole and pilot-hole instructions
  • Cutting-speed and feed data for the exact diameter
  • Coolant or cutting-oil requirements
  • Precision or non-precision classification

Manufacturer statements can narrow the search, but they are not independent performance tests. KnKut, for example, markets a carbide-tipped set for hardened steel from 48 to 65 HRC and instructs users to apply low RPM, cutting oil, and heavy pressure. Those claims belong to that particular set, not carbide drills generally. See KnKut’s product-specific application claim.

Champion likewise identifies particular carbide-tipped drills for hardened-steel work while listing its Item 105 solid-carbide drill primarily for abrasive non-ferrous materials. That catalog distinction demonstrates why solid-carbide construction alone does not prove hardened-steel suitability. Champion’s stated applications and hardness ranges are manufacturer claims rather than independent test results. Review Champion’s carbide-drill listings and Item 105 application.

Recheck mutable product specifications immediately before purchase. Manufacturers can revise applications, instructions, and product lines.

Use this purchase gate:

Do not make a precise product or parameter recommendation unless you can identify the alloy or credible hardness range, define the hole, verify the drill’s stated application, and assess the available machine.

Uncertainty does not always make a job impossible. It does mean that a particular drill, RPM, feed, or drilling cycle cannot honestly be presented as a verified match.

Solid Carbide, Carbide-Tipped, and Other Drill Constructions

A solid-carbide drill is carbide throughout its cutting body. A carbide-tipped drill normally has a steel body with a carbide cutting portion brazed into or onto it.

That construction difference affects how each tool responds to load.

Solid carbide offers high rigidity, wear resistance, edge retention, and resistance to deflection. Those properties can be valuable when the drill is held concentrically in a stable mill or CNC machine and enters under controlled feed. The disadvantage is limited tolerance for bending. Shock, chatter, runout, interrupted engagement, or sideways force can chip the cutting edge or break the tool.

A carbide-tipped drill retains a steel body behind its cutting portion. That body can offer more flexibility and vibration tolerance, which may suit less predictable repair work or an explicitly approved portable application. It does not make every carbide-tipped drill appropriate for hard steel. Tip grade, brazing, point geometry, flute form, and stated application still govern suitability.

The choice is therefore not “premium solid carbide versus inferior carbide-tipped.” It is a choice among constructions, geometries, intended materials, and operating conditions.

Drill material or construction General strength General limitation Where it may fit
HSS Tough and relatively forgiving May wear rapidly in very hard material Softer steels or setups where toughness matters more than wear resistance
Cobalt-alloy HSS More heat- and wear-resistant than ordinary HSS Exact grade still has material limits Difficult steels when the exact cobalt drill is rated for the work
Carbide-tipped Steel body may tolerate more vibration Tip designs and applications vary widely Purpose-rated repair work, hardened fasteners, safes, or other named uses
Solid carbide Rigid, wear-resistant, and capable of precision Brittle under wobble, shock, and side loading Purpose-rated work on rigid, low-runout machinery

HSS may be preferable when forgiveness matters more than maximum hardness. Cobalt drills are commonly considered for difficult steels, but “cobalt” does not imply unlimited hardness capability. Carbide becomes attractive for very hard material when both the drill specification and the setup support it. Tivoly’s comparison similarly characterizes carbide as harder and more heat-resistant than HSS while warning that shock and vibration make brittle carbide more vulnerable to failure. See Tivoly’s HSS and carbide comparison.

You will also encounter terms that describe a tool’s shape or proportions rather than its material capability:

  • Jobber drill: A common general-purpose length-to-diameter format.
  • Stub drill: Shorter than a comparable jobber drill, generally improving rigidity.
  • Spade drill: Uses a broad, relatively flat cutting form; construction and applications vary.
  • Straight-flute drill: Has little or no helical flute angle and may behave differently during chip evacuation and breakthrough.
  • Coolant-through drill: Carries coolant through internal passages toward the cutting zone.
  • Annular cutter: Removes a ring rather than converting the full hole cross-section into chips.

Retail categories include solid-carbide jobber, stub, spade, straight-flute, coolant-through, and annular tools. Format availability does not prove that a particular item is suitable for hardened steel. Short tooling is worth investigating because reduced overhang can reduce deflection, but there is no universal length that guarantees success. Use the shortest practical arrangement that supplies the required depth and chip space while complying with the drill maker’s instructions.

Visual identification brief

  • A solid-carbide metal drill commonly has a consistent carbide cutting body and precision-ground metal-cutting geometry. Its appearance does not reveal an approved hardness range.
  • A steel-bodied carbide-tipped metal drill has a distinct carbide cutting portion joined to a steel body. Its point may be designed for a specific precision or repair operation.
  • A carbide-tipped masonry or tile bit often has a visibly brazed insert and geometry intended for masonry, tile, ceramic, or impact use. Carbide content does not make it a hardened-steel drill.

Readers who need definitions for ordinary twist, masonry, spade, Forstner, hole-saw, and step bits can consult Drill Review’s general guide to drill-bit types. That overview does not establish carbide performance in hardened steel.

Selection Matrix: Match the Drill to Hardness, Accuracy, and Equipment

Use known hardness as a filter, not as the only selection criterion. A drill that nominally covers the workpiece HRC may still be wrong for the required depth, tolerance, machine, or type of engagement.

Known HRC range Hole objective Accuracy requirement Machine stability Construction to investigate Confirm before buying
Inside a named drill’s rating Precision new hole in a die, armor plate, or comparable work High Rigid mill, CNC machine, or suitable precision setup Purpose-rated precision carbide or carbide-tipped drill Steel application, HRC range, tolerance capability, holder, speed, feed, coolant, depth
Inside a repair drill’s rating Remove material from a hardened component, safe, or broken fastener Low to moderate Sound drill press or manufacturer-approved portable setup Purpose-built carbide-tipped repair drill Precision classification, approved machine, starting method, chip clearing
Known hard steel in repeat production Repeated new holes Moderate to high Stable mill or CNC machine with controlled feed Purpose-rated solid-carbide drill Carbide grade, coating, geometry, runout requirement, coolant, feed, maximum depth
Known hardness, conventional drill press One or a few holes Application-dependent Must be assessed rather than assumed Purpose-rated carbide-tipped or solid carbide, depending on technical data Spindle play, chuck condition, alignment, overhang, clamping, drill-press approval
Known hardness, handheld access only Rough repair or obstruction removal Usually limited Low and operator-dependent More vibration-tolerant, purpose-rated carbide-tipped product Explicit portable-use permission, workholding, alignment, fracture risk, tolerance
Known hardness, deep blind hole New or repeated hole Application-dependent Preferably controlled and rigid Drill with suitable flute capacity or coolant-through design Maximum depth, evacuation method, coolant delivery, restart procedure
Unknown alloy or hardness Any critical hole Any Any No precise recommendation yet Identify material, estimate or measure hardness, and consult the tool manufacturer

Champion’s catalog illustrates the difference between two buying objectives. The CT605 is presented as a precision carbide-tipped drill for hardened steel and armor plate, while the CT705 is presented for non-precision work involving hardened steel, safes, and broken fasteners. The important lesson is the classification: a tool that removes a hardened obstruction may still be unsuitable for a close-tolerance finished hole.

In a stable mill or CNC environment, a purpose-rated solid-carbide drill may provide the rigidity and repeatability required for production work. Verify that its technical information explicitly names the steel or hardness. Do not substitute a general statement that carbide cuts “hard materials.”

A conventional drill press requires a machine-level assessment. Check spindle play, chuck condition, visible runout, table and vise alignment, quill behavior under load, overhang, and workpiece support. A large press can still be a poor carbide platform if its spindle or chuck wobbles.

Handheld work introduces more movement and operator-dependent alignment. Portable-use permission for one carbide-tipped product does not establish that every handheld operation will be safe, accurate, or reliable. Solid carbide is especially unforgiving when the operator must steer the tool or correct alignment during the cut.

For a deep hole, confirm:

  • Maximum drilling depth
  • Usable flute length
  • Whether pecking is permitted
  • Whether continuous engagement is required
  • The approved chip-clearing method
  • Whether external or through-tool coolant is required
  • Blind-hole bottom clearance
  • Whether the machine can maintain alignment at the necessary extension

Do not infer hardened-steel suitability from:

  • A carbide label
  • Solid-carbide construction
  • Retail category placement
  • Price or stock status
  • Customer ratings
  • A familiar point shape
  • Success in a different hard material
  • A short, coated, or coolant-through design

These are shopping attributes, not application evidence.

Check the Machine, Workholding, and Safety Before Cutting

Inspect the setup before opening a new carbide drill. The objective is to minimize avoidable movement between the cutting edge and the workpiece.

Machine and tool checklist

  • Check the spindle and quill for perceptible play.
  • Inspect the chuck, collet, or specified holder for dirt, damage, and poor seating.
  • Rotate the mounted drill slowly and look for visible runout.
  • Confirm that the drill axis matches the intended hole axis.
  • Keep tool projection as short as the operation permits.
  • Verify that the table, vise, fixture, and supports cannot shift under feed.
  • Support thin, irregular, or cantilevered work.
  • Provide chip clearance without allowing chips to accumulate around the cut.
  • Confirm that the holder or spindle will not contact the work at full depth.
  • Ensure that the feed mechanism can apply smooth axial force without lateral correction.

Carbide’s hardness and heat resistance come with relatively little tolerance for bending and impact. Chatter adds repeated shock. Forum commentary about solid-carbide drilling repeatedly identifies runout, chatter, unstable workholding, excess overhang, and poorly controlled breakthrough as failure risks, although the thread contains conflicting advice on speed, lubricant, pilots, and pecking. Review the Practical Machinist discussion and its limitations.

A sound mill, CNC machine, or drill press generally offers better alignment and stability than a handheld drill. That is not a guarantee: machine condition still controls suitability. Without technical data for the exact drill, there is no defensible universal runout threshold.

Use the holder specified by the tool manufacturer. A low-runout collet or precision holder may suit some solid-carbide drills, but a collet is not universally mandatory. Shank design, manufacturer instructions, required accuracy, holder condition, and measured performance determine the choice.

Workholding checklist

  • Clamp the component mechanically rather than holding it by hand.
  • Prevent rotation and vertical lift.
  • Support irregular parts at stable contact points.
  • Avoid clamping that distorts thin material.
  • Position broken fasteners so the drill can remain axial.
  • Confirm clearance beneath through-holes.
  • Keep clamps outside the tool and chip paths.

Breakthrough requires a plan because cutting resistance changes as the remaining material becomes thin. Backing support is often discussed for thin work, but the backing material and arrangement must suit the specific operation. Never reach into a rotating setup to restrain a lifting or spinning part.

Carbide cutting tools may chip or shatter. Champion expressly warns that cutting tools can shatter and advises appropriate safety equipment. See Champion’s manufacturer warning. Use appropriate eye protection and add face protection when fragments present a credible hazard. Keep hands and loose items clear of rotating equipment, account for sharp or hot chips, and use the machine’s guards as intended. A commercial hardened-steel drilling guide also emphasizes secure clamping, eye protection, and keeping hands clear of rotating tools. Review the published setup and safety guidance.

These sources do not replace the machine manual, workplace procedures, or a qualified machinist’s assessment.

Stop before starting if:

  • The workpiece cannot be clamped securely.
  • The spindle, holder, or mounted drill visibly wobbles.
  • The cutting axis cannot be aligned.
  • The tool must be steered sideways to reach the hole.
  • The part is safety-critical and its material or heat treatment is uncertain.
  • A possible tool fracture cannot be controlled.
  • You cannot verify that the drill is approved for the operation.

Improve the fixture, change machines, choose another process, or outsource the job rather than attempting to compensate with hand pressure.

Set RPM, Feed, Coolant, and Chip Control From Exact-Tool Data

There is no universal RPM for drilling hardened steel with carbide.

Spindle speed depends on:

  • Drill diameter
  • Recommended cutting speed
  • Carbide grade
  • Coating
  • Point and flute geometry
  • Steel grade and hardness
  • Hole depth
  • Coolant condition
  • Machine rigidity
  • Continuous or interrupted engagement

The metric conversion is:

RPM = cutting speed in m/min × 1000 ÷ π × drill diameter in mm

This relationship converts cutting speed into spindle speed; it does not determine the correct cutting speed. A commercial carbide-drilling guide provides the same diameter-based conversion while emphasizing that the applicable cutting data depends on the drill and work material. See the cutting-speed conversion and tool-specific cautions.

Obtain the cutting-speed input from the manufacturer of the exact drill for the applicable material, hardness, diameter, coolant condition, and machine. Changing drill diameter while holding cutting speed constant changes RPM, which is why “run carbide slowly” is incomplete advice.

Source instructions also demonstrate why parameters cannot be transferred casually. KnKut calls for low RPM, cutting oil, and heavy pressure with its carbide-tipped hardened-steel set. Champion’s supplied catalog information describes light feed with steady pressure, constant coolant, and frequent chip clearing for its precision hardened-steel drill. These are product-specific statements, not interchangeable recipes. Check KnKut’s operating instructions for the named set.

Do not respond to rubbing by adding uncontrolled force.

Coolant and cutting oil are also tool-specific. Depending on the drill, instructions may call for cutting oil, constant coolant, another controlled method, or thermally cautious operation. Do not combine fragments of contradictory advice—for example, heating a dry edge and then applying intermittent coolant—without knowing that the exact drill permits the resulting cycle.

Pilot holes are conditional. For other carbide geometries, the pilot causes partial edge engagement that may promote chatter or concentrated loading. Use a pilot only when the manufacturer approves it and defines the starting method.

Peck drilling is equally conditional. Some drills require a peck cycle; others favor continuous engagement or a defined chip-breaking motion. Follow the exact tool instructions rather than applying a generic deep-hole habit.

For the first hole, record:

  • Manufacturer and exact drill identification
  • Construction, coating, and diameter
  • Steel grade or best-supported identification
  • Measured or estimated hardness
  • Hole depth and type
  • Machine and holder
  • RPM
  • Feed setting or method
  • Coolant or oil and delivery method
  • Starting procedure
  • Chip appearance
  • Noise, vibration, and heat observations
  • Edge condition after cutting
  • Finished hole size and whether it met the requirement

That log turns the next adjustment into a controlled change rather than another guess.

Plan the Operation: New Holes, Enlargement, Thin Stock, and Broken Fasteners

The correct process depends on how the cutting edges meet the work.

New holes

A new hole requires a stable starting surface, accurate alignment, secure clamping, and a starting method approved for the drill. Do not prescribe center-punching, spotting, or pilot drilling universally.

If the surface is curved, scaled, damaged, or interrupted, determine whether it can be prepared without harming the part. Wandering before full engagement is not only an accuracy problem; it can impose side load on carbide.

Enlarging existing holes

The tool can chatter, pull sideways, or produce an inaccurate hole.

Depending on the access and tolerance, alternatives may include:

  • A carbide end mill in a suitable milling machine
  • A carbide burr
  • A mounted abrasive point
  • Controlled grinding
  • EDM
  • A fixture that establishes the new center

An end mill or burr is not automatically safer. Do not assume an ordinary drill press can safely perform milling merely because an end mill fits its chuck.

Thin hardened stock

Thin stock combines limited support with abrupt breakthrough. Support the cutting area, minimize overhang and wobble, and plan how the exit side will be controlled. If backing is used, it must support the part without leaving a gap into which the work can flex.

Do not reflexively increase or decrease feed near breakthrough. Follow the drill maker’s process and maintain control of the feed mechanism. If the part lifts, vibrates, or grabs, stop the spindle and correct the setup rather than attempting to restrain it by hand.

Broken bolts, studs, taps, and extractors

First define the outcome. Removing hardened material from an obstruction is different from creating a finished, close-tolerance hole. A repair drill may disrupt a hardened fastener even though the opening later requires boring, tapping, sleeving, or another finishing operation.

A guide, bushing, rigid milling setup, or professional process may be preferable when preserving the original thread or hole location matters.

The Champion CT605 and CT705 examples reinforce this distinction: one is presented for precision hardened-steel drilling, while the other is presented for non-precision repair work. Choose according to the required result, not hardness alone.

What about successful masonry- or tile-bit experiments?

One Dallas Makerspace participant reported enlarging three knife-tang holes from 5 mm to 8 mm using carbide-tipped masonry bits in a clamped drill press. The account involved steel of unknown composition and hardness and was not a controlled test. Its reported spindle setting is not transferable guidance. Read the knife-tang anecdote and its limitations.

A separate automotive account reports that a non-fluted granite-tile bit produced a 1/8-inch hole in one hardened shift-linkage component after other approaches failed. The alloy, hardness, bit model, feed, and measured spindle speed were not established. The result shows isolated material removal, not that tile bits are repeatable, safe, or superior substitutes for purpose-made hardened-steel drills. See the documented automotive anecdote.

Do not use a masonry or tile bit on hardened steel unless its manufacturer explicitly approves the bit for that material and operating method.

Heating or localized annealing is not a routine shortcut. The evidence pack documents unsuccessful annealing attempts in one automotive case but does not establish a general heating procedure. Because changing a treated component may affect its condition or suitability, safety-critical or heat-treatment-sensitive parts should be assessed by a qualified machinist or materials specialist.

Troubleshooting: Know When to Stop Before the Carbide Breaks

Treat sound, chips, vibration, and penetration as process feedback. A carbide drill that is not cutting correctly should not be forced until it fails.

Symptom Possible causes to investigate Conservative response
Drill skids at the start Poor alignment, unsuitable starting method, curved or damaged surface, wrong geometry Stop; verify alignment, surface condition, and approved starting procedure
Squealing Rubbing, unsuitable speed or feed, damaged edge, incorrect coolant method Stop and inspect rather than masking the sound with more pressure
Polished surface but few useful chips Insufficient engagement, dull or chipped edge, wrong product, material beyond rating Reassess tool suitability, edge condition, RPM, feed, and material
Chatter Work movement, runout, excess overhang, weak support, partial edge engagement Improve clamping, alignment, holder condition, and rigidity
Penetration stalls Packed chips, damaged edge, unsuitable parameters, hardness outside rating Stop, inspect, and check the applicable product data
Chipped cutting edge Shock, wobble, side loading, interrupted engagement, unstable breakthrough Retire the tool or have it professionally assessed
Overheating Rubbing, unsuitable speed or feed, failed coolant delivery, packed chips Stop and identify the cause; do not improvise abrupt cooling
Packed flutes Excess depth, inadequate evacuation, wrong cycle, unsuitable flute design Use only the manufacturer-approved clearing method
Grabbing near breakthrough Insufficient support, movement, abrupt loss of resistance Stop and improve backing, support, or process control

For skidding, check whether the drill is designed to start directly on the surface. Confirm the required axis and make sure a surface defect is not pushing the point sideways.

For rubbing or stalled penetration, stop the spindle and inspect the cutting edge under suitable magnification. Reassess hardness, RPM, axial engagement, coolant delivery, geometry, and product rating. Blindly increasing force can turn a parameter problem into a broken tool.

For chatter, inspect the mechanical system in order:

  1. Is the workpiece moving or flexing?
  2. Is there visible spindle, holder, or chuck runout?
  3. Is tool overhang greater than necessary?
  4. Is only part of the cutting edge engaged?
  5. Is the machine or fixture insufficiently rigid?
  6. Has an edge already chipped?

Once an edge is damaged, continued use may worsen vibration and hole error. A visibly chipped drill should be retired or evaluated by a competent reconditioning service where appropriate.

Poor chip evacuation must be corrected using the exact drill’s approved method. Do not introduce pecking merely because the flutes packed if the manufacturer calls for continuous engagement. A different drilling cycle, flute design, coolant arrangement, or process may be necessary.

If the work becomes unstable near breakthrough, stop. Do not try to catch, press down, or restrain it by hand.

Abandon the attempt when any of the following persists:

  • Repeated edge chipping
  • Uncontrolled chatter
  • Inability to produce useful chips
  • Workpiece movement or flexing
  • Uncertain product suitability
  • Inability to clear chips by an approved method
  • A machine that cannot maintain alignment
  • A tolerance the available setup cannot hold

Stopping does not mean carbide cannot cut the material. It means the selected tool, machine, or process is not a controlled match.

When EDM, Grinding, Abrasives, or Professional Machining Is the Better Choice

Drilling is only one way to create or enlarge an opening. Choose the process according to safety, accuracy, access, machine capability, and total attempt cost.

Carbide burrs and end mills

A carbide burr can remove material gradually from an obstruction or irregular opening where conventional drill engagement would be unstable. A carbide end mill may enlarge, interpolate, or reposition a hole in a suitable milling machine. Both create radial forces and require appropriate holders, machines, workholding, and technique.

Grinding and abrasive tools

Mounted stones, abrasive points, or suitable diamond tools may remove hard material incrementally. They can be useful when access is restricted and the finished opening does not require drill-produced roundness or finish. Heat, fragments, dust, and dimensional error still need to be controlled.

EDM

A qualified shop can determine whether EDM suits the component and required feature.

The automotive case discussed earlier reported a historical $200 EDM quote for that particular job. It is not a current market benchmark; cost depends on the component, setup, location, access, and accuracy requirement. See the original case account.

Waterjet and professional machining

A machine shop may instead recommend grinding, milling, EDM, or a purpose-built fixture.

Before buying another specialty drill, ask:

  • What will another attempt cost?
  • What is the replacement value of the part?
  • Could a broken carbide tool make professional removal harder?
  • Can the machine maintain the required location and tolerance?
  • Is damage to threads, coatings, heat treatment, or adjacent features acceptable?
  • What would a qualified shop charge to assess or complete the operation?

Escalate the job when it involves an unknown alloy or hardness, critical heat treatment, a safety-critical component, close tolerances, an irreplaceable part, unstable access, or repeated carbide failure.

Frequently Asked Questions

Can carbide drill bits drill steel hardened to 60 HRC?

Yes—if the exact drill is explicitly rated for that steel and hardness. A carbide label alone is not enough.

Confirm the material family, diameter, depth, precision requirement, machine, holder, coolant, and cutting data. A non-precision repair drill is not automatically suitable for a close-tolerance hole at the same hardness.

Is solid carbide better than carbide-tipped for hardened steel?

Not universally.

Solid carbide offers high rigidity, wear resistance, edge retention, and precision in stable conditions. It is less tolerant of wobble, shock, chatter, and side loading. Carbide-tipped construction uses a steel body that may tolerate less predictable conditions better, but performance still depends on the cutting tip and stated application.

Investigate solid carbide for repeatable work in a rigid, low-runout mill or CNC setup when the technical sheet covers the material. Investigate a purpose-rated carbide-tipped drill for repair work, non-precision obstruction removal, or an approved portable application.

Can I drill hardened steel with a handheld or cordless drill?

Sometimes, but only when the exact drill permits portable use and the operation can be kept aligned and stable. The workpiece must be mechanically clamped, and the operator must feed axially without steering the tool sideways.

Portable-use permission does not guarantee accuracy, safety, or reliability. Avoid handheld solid-carbide drilling unless the tool manufacturer expressly supports the setup and the workholding and fracture risks can be controlled.

What RPM should I use for a carbide drill in hardened steel?

Use the RPM calculated from the exact drill manufacturer’s cutting-speed data for the material, hardness, diameter, coolant condition, and machine:

RPM = cutting speed in m/min × 1000 ÷ π × diameter in mm

The formula is only as reliable as its cutting-speed input. Do not copy a forum RPM, use a generic “carbide speed,” or assume the lowest spindle setting is correct. Confirm feed and coolant at the same time.

Do masonry or granite-tile bits work on hardened steel?

Isolated anecdotes report that they have removed material from particular components, but those accounts do not establish a repeatable or safety-validated method. The workpiece alloys, hardness values, exact bit specifications, feeds, and measured cutting conditions were not documented adequately.

Masonry and tile bits may contain carbide, but their geometry and intended operation can differ substantially from those of purpose-made hardened-steel drills. Do not use one for hardened steel without explicit manufacturer approval for the material and machine.

The final verification workflow is straightforward:

  1. Identify the alloy and hardness.
  2. Define the hole’s diameter, depth, type, and tolerance.
  3. Select a drill explicitly rated for that application.
  4. Confirm that the machine, holder, workholding, coolant, and cutting data satisfy the drill manufacturer’s requirements.
  5. Stop and reassess—or use professional machining—if the tool rubs, chatters, chips, or cannot be operated in a stable setup.

The right answer is not simply “carbide.” It is a purpose-rated drill matched to a controlled operation.

Read next
