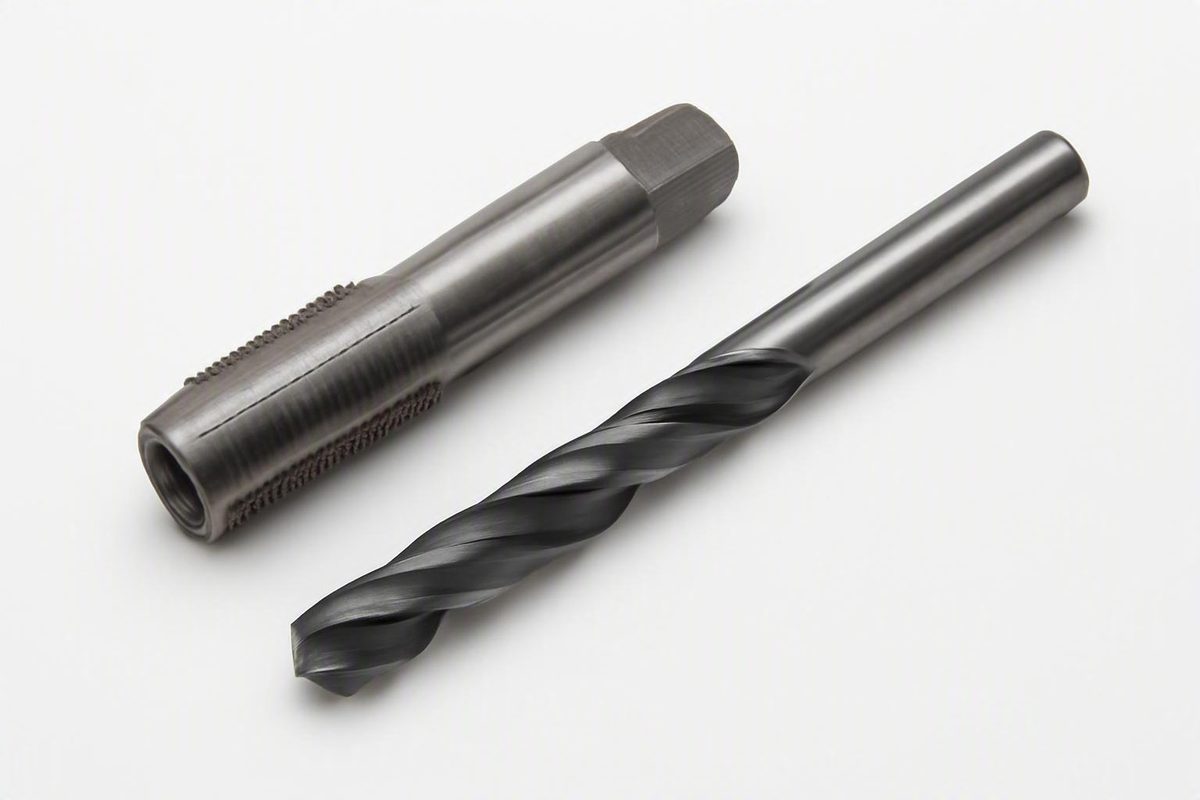

Which Drill Bit Should You Use for a 1/2-14 NPT Tap?

The short answer: start with 45/64 inch, then check the tap

For a generic 1/2-14 NPT hole tapped directly without a taper reamer, start with a 45/64-inch drill bit. Multiple general charts list that size, and Allied Machine expressly labels its NPT/NPTF drill dimensions as applying without a taper reamer. However, 23/32 inch is also a documented recommendation in supplier charts, individual tap listings, and matched tap-and-drill sets. See Allied Machine’s NPT tap-drill chart and preparation note.

Quick lookup

• Thread: 1/2-14 NPT
• General direct-tapping chart size: 45/64 inch
• 45/64 decimal and metric size: 0.703125 inch; approximately 17.86 mm (45/64-inch size reference)
• Documented alternative: 23/32 inch
• 23/32 decimal and metric size: 0.71875 inch; approximately 18.26 mm
• Before drilling: Read the complete tap marking and check the drill recommendation supplied for that tap. If the documentation specifies 23/32 inch or another diameter, follow that product-specific instruction.

The two sizes differ by 1/64 inch, or 0.015625 inch, which is approximately 0.40 mm. Although they may look nearly identical on a bench, they are not the same starting diameter. Drilling the larger hole removes more material, and that choice cannot be reversed. The supplied evidence does not establish a universal performance consequence for choosing one over the other, so the correct approach is to verify the selected tap rather than infer how it will behave.

The 23/32-inch alternative is not an isolated typographical error. Lawson Products identifies a particular 1/2-14 NPT pipe tap with a recommended 23/32-inch drill, and commercial matched sets also pair that drill size with a 1/2-14 NPT tap. Review Lawson’s product-specific tap listing.

Use this decision rule:

• No tool-specific instructions, direct tapping, and no taper reamer: Use 45/64 inch as the best-supported general-chart starting value in the reviewed evidence.
• The selected tap, its manufacturer, or a matched set specifies 23/32 inch: Use 23/32 inch for that tool.
• The process includes a taper reamer: Do not assume that either direct-tapping value is the correct initial drill diameter.
• The work is pressure-containing, safety-critical, or inspection-controlled: Confirm the process against the applicable standard, tool documentation, drawing, and required gauging method.

The search phrase “1 2 NPT drill size” is interpreted here as 1/2-inch NPT, not 1-1/2-inch NPT. Those are entirely different pipe-thread sizes. The 45/64- and 23/32-inch dimensions discussed here do not apply to a 1-1/2 NPT tap.

What 1/2-14 NPT actually means

The complete designation is 1/2-14 NPT:

• 14 means 14 threads per inch.
• NPT identifies a tapered pipe thread.

The nominal 1/2-inch label is not an instruction to drill a 1/2-inch hole. Pipe threads use nominal size designations rather than naming the required pilot-hole diameter directly. That is why the published tap-drill dimensions—whether 45/64 or 23/32 inch—are substantially larger than 1/2 inch.

A commercial drill reference presents 1/2-14 NPT, 14 threads per inch, and a 45/64-inch drill together; it also describes 1/2 NPT as a tapered thread intended to form sealing contact at the threaded interface. The drill dimension is listed as 0.7031 inch, or approximately 17.86 mm.

The tapered thread form makes the complete tool marking important. Do not select a drill from “1/2” and “14 TPI” alone. Before using either commonly published recommendation, confirm that the tap is marked 1/2-14 NPT.

Similar-looking markings can identify different operations:

• 1/2-14 NPT is the tapered pipe thread addressed here.

• 1/2-14 NPS is a straight or parallel pipe thread for which the cited charts list a different drill size.

• 1-1/2 NPT is a much larger nominal pipe thread, not another way to write 1/2 NPT.

Reading the full designation prevents a common lookup error: matching the pitch while overlooking the nominal size or thread form.

45/64 vs. 23/32: the drill sizes compared

The two principal published recommendations compare as follows:

Fractional size	Decimal inches	Approximate millimeters	Where it appears in the reviewed evidence	Stated preparation condition
45/64 inch	0.703125	17.86 mm	Allied Machine, AutoDrill, Fractory, and a commercial drill reference	Allied Machine and Fractory expressly associate it with tapping without a taper reamer
23/32 inch	0.71875	18.26 mm	MISUMI, retailer charts, an individual Lawson tap listing, and matched-set listings	Generally presented as the recommended drill for the listed chart, tap, or set; reaming conditions are not stated

The decimal values shown above are exact conversions of the fractional sizes; the metric values are rounded. Their arithmetic difference is:

• 1/64 inch
• 0.015625 inch
• Approximately 0.40 mm

The larger 23/32-inch drill removes more material and leaves a larger starting hole. That dimensional fact does not establish whether the larger preparation is desirable for a particular tap, workpiece, or controlled process.

The disagreement is directly documented in general commercial charts. AutoDrill lists 45/64 inch, rounded to 0.703 inch, for 1/2-14 NPT. See AutoDrill’s 1/2-14 NPT entry.

By contrast, MISUMI lists 23/32 inch, rounded to 0.719 inch, for the same nominal size and pitch. Its page also states that the chart is informational and that buyers remain responsible for specifying their requirements. Compare MISUMI’s 1/2-inch NPT entry.

A retail listing for a Drill America matched set likewise pairs a 1/2-inch NPT tap with a 23/32-inch drill. This is corroborative commercial evidence rather than a governing technical standard, but it confirms that 23/32 inch is an intentional product pairing rather than a value that should automatically be “corrected” to 45/64 inch. View the matched tap-and-drill listing.

The available sources do not establish a standards-based reason for the split. Variables such as tap geometry, desired engagement, tolerances, workpiece material, cutting conditions, and preparation method may be relevant to a machining process, but the evidence does not quantify their effects or prove that any one of them causes these two published recommendations.

Accordingly:

• Do not dismiss 23/32 inch as an error merely because another chart lists 45/64 inch.
• Do not call 45/64 inch universally official for every 1/2-14 NPT operation.
• Do not average the two dimensions.
• Do not choose solely according to which bit is available.
• Give precedence to documentation tied to the exact tap and approved process.

One secondary commercial article lists 11/16 inch for 1/2-14 NPT. That smaller dimension is not adequately corroborated by the stronger comparison charts or product-specific references reviewed here. It should be treated as an outlier requiring independent confirmation, not as a third equally supported default.

Why the 45/64-inch answer has an important condition

The support for the general 45/64-inch answer includes a significant process condition: direct tapping without a taper reamer.

Allied Machine’s chart labels its NPT/NPTF drill sizes as applying without a taper reamer. Fractory likewise lists 45/64 inch for directly tapping a 1/2-14 NPT or NPTF hole without reaming and separates those tapered threads from straight NPS and NPSF threads. Read Fractory’s pipe-thread chart and direct-tapping condition.

That evidence supports a carefully bounded conclusion:

Within the reviewed evidence, 45/64 inch is the best-supported general-chart value for directly tapping a 1/2-14 NPT hole without a taper reamer when no tool-specific instruction conflicts with it.

It does not establish that:

• Every 1/2-14 NPT tap must use 45/64 inch.
• A tap supplied with a 23/32-inch recommendation should instead be used with 45/64 inch.
• A taper-reamed process should start with either of the direct-tapping dimensions.
• Either pilot diameter guarantees an acceptable finished thread or seal.

The supplied references do not establish the correct initial drill diameter for that sequence. If the drawing, process sheet, or tooling calls for taper reaming, obtain the dimensions for that specific process instead of borrowing a direct-tapping chart value.

Before drilling an expensive casting, manifold, machine component, or nonreplaceable part, identify:

1. The exact tap: Confirm its full size and thread-form marking.
2. The preparation method: Determine whether the hole will be tapped directly or taper reamed.
3. The applicable recommendation: Check the tap packaging, manufacturer’s technical data, matched-set specification, drawing, and approved process.

The reviewed references are primarily commercial charts and product pages. They document the published recommendations and their disagreement, but they are not the governing pipe-thread standards text.

Do not substitute an NPS drill size for NPT

NPT and NPS are not two names for the same thread form:

• NPT is tapered.
• NPS is straight or parallel.

The cited comparison charts list different drill sizes even though both 1/2-inch rows have 14 threads per inch:

Thread designation	Form	Pitch	Listed drill size
1/2-14 NPT or NPTF	Tapered	14 TPI	45/64 inch, without a taper reamer
1/2-14 NPS or NPSF	Straight or parallel	14 TPI	47/64 inch

Allied Machine’s chart provides both values in the same 1/2-inch row: 45/64 inch for NPT/NPTF and 47/64 inch for NPS/NPSF, each at 14 TPI.

Pitch alone therefore does not determine the pilot-hole size. A tap can carry the same nominal size and thread count while having a different thread form and a different listed drill diameter.

Read the complete marking and distinguish among:

• 1/2-14 NPT
• 1/2-14 NPTF
• 1/2-14 NPS
• 1/2-14 NPSF

The charts group NPT with NPTF for drill lookup and NPS with NPSF, but that grouping does not prove interchangeability in every component, service condition, or inspection system. Nor does the ability to start or engage two threaded parts establish an acceptable thread form, gauging result, or seal.

A practical drill-size selection workflow

Use this workflow before committing the workpiece.

1. Confirm the complete tap marking.

The tool should be marked 1/2-14 NPT if that is the required internal thread. Stop and recheck the job if it instead says NPS, NPTF, NPSF, or 1-1/2 NPT. Do not infer the thread form from the nominal size and pitch alone.

2. Look for a tool-specific drill recommendation.

Check:

• Tap packaging
• Manufacturer technical sheets or catalogs
• The supplier page for the exact product
• A matched tap-and-drill set specification
• The approved drawing or shop process

Record the recommendation with the tap. If sources conflict, documentation tied to the exact tool and controlled process is more directly relevant than a generic chart.

3. Follow an express 23/32-inch instruction for the selected tap.

If the specific tap or matched set calls for 23/32 inch, do not silently replace that dimension with 45/64 inch. If a marketplace or retailer listing conflicts with the manufacturer’s current technical sheet, verify the information with the manufacturer or supplier before drilling.

4. If no tool-specific direction exists, identify the preparation method.

For direct tapping without a taper reamer, use 45/64 inch as the best-supported general-chart starting value in the reviewed evidence. Do not transfer that recommendation automatically to a taper-reamed process.

5. Plan diameter and depth separately.

Selecting 45/64 or 23/32 inch answers only the pilot-hole diameter question. It does not determine:

• Total drilled depth
• Tapping depth
• Usable full-thread depth
• Clearance for the tap’s chamfer or lead
• Chip space
• Bottom clearance
• Entry preparation
• Final gauging requirements

This distinction is especially important in blind holes.

6. Confirm controlled or critical work against its governing requirements.

For pressure-containing, safety-critical, or inspection-controlled components, check the applicable standard, approved drawing or process, tap manufacturer’s data, and required gauging method before machining. A general online chart is not by itself approval for a controlled process.

7. Inspect according to the job requirement.

Use the inspection or gauging method specified for the work. Do not assume that a fitting turning into the hole proves the thread is properly gauged or leak-free.

This workflow deliberately avoids material-specific drill adjustments. The evidence does not establish reliable adjustments based on workpiece material, cutting conditions, tap geometry, or desired engagement.

Blind holes: diameter is only one part of the setup

A blind 1/2-14 NPT hole requires several dimensions to be planned independently:

1. Pilot-hole diameter
2. Total drilled depth
3. Required usable thread depth
4. Tap chamfer or lead clearance
5. Chip clearance
6. Bottom clearance appropriate to the drill and tap geometry

The required setup cannot be derived from pilot diameter alone. The drilled bottom, the tap’s chamfered lead, and the required clearance all affect how much usable thread can be produced before the tool reaches the bottom.

Third-party, nonuniversal depth figure: One commercial article recommends a minimum blind-hole depth of 0.875 inch for 1/2-inch NPT and describes allowing clearance for two to three chamfer threads. The same source contains apparent internal inconsistencies, so this number is not established as a universal standard requirement and should not be the sole basis for a critical setup. Review the attributed blind-hole table and method.

Do not turn that 0.875-inch figure into an across-the-board drilling instruction. Final depth planning depends on the particular tap’s geometry, required usable thread depth, drilled-bottom shape, available material, and inspection requirements.

For a blind-hole setup:

• Establish the usable thread depth required by the design.
• Identify the selected tap’s lead or chamfer geometry.
• Provide the clearance required for that tool.
• Allow appropriate space for chips and the drilled bottom.
• Confirm that enough material remains beneath and around the hole.
• Verify the planned depth against the tap manufacturer’s documentation and the controlled process.

Keep pilot diameter and hole depth as separate entries on the setup sheet.

What the available charts cannot determine for you

The reviewed evidence supports a practical lookup, but it does not reproduce the governing ASME pipe-thread standards text or establish one official pilot-hole diameter for every 1/2-14 NPT tapping condition.

It also does not determine how these variables should affect a particular operation:

• Workpiece material
• Tap geometry or condition
• Desired thread engagement
• Dimensional tolerances
• Cutting conditions
• Direct tapping versus taper reaming
• Required finished-thread depth
• Inspection and gauging method

These variables should not be ignored, but unsupported adjustments should not be invented. Use controlled manufacturer information when it is available; otherwise, consult the technical authority responsible for the work.

The drill creates the starting hole, while the tap, setup, depth, thread form, process control, assembly method, and inspection remain relevant. One secondary source advises checking critical threads with a thread gauge or mating fitting, but its guidance should not replace the inspection procedure specified for the job.

For pressure-containing or otherwise controlled work:

• Confirm the full thread designation.
• Use the applicable standard, drawing, or approved process.
• Follow the selected tap manufacturer’s data.
• Establish drilling and tapping depths separately.
• Apply the specified inspection or gauging method.
• Resolve conflicting documentation before machining.

The concise decision rule is:

Generic 1/2-14 NPT direct tapping, no taper reamer, and no other instructions: use 45/64 inch. If the selected tap or matched set provides a different documented drill size, follow that tool-specific instruction—including 23/32 inch where specified.

Is 45/64 inch or 23/32 inch correct for a 1/2-14 NPT tap?

Both are published recommendations with different documented contexts. Multiple general direct-tapping charts list 45/64 inch for 1/2-14 NPT without a taper reamer. Other general supplier charts list 23/32 inch, and that size also appears in product-specific tap and matched-set listings.

Use 45/64 inch as the general starting value when tapping directly without a taper reamer and when no tool-specific instruction conflicts with it. If the exact tap or matched set expressly specifies 23/32 inch, follow that documentation.

What is 45/64 inch in decimal and metric measurements?

45/64 inch equals 0.703125 inch, or approximately 17.86 mm.

Commercial charts may round the decimal value to 0.703 or 0.7031 inch. Those rounded values identify the same nominal 45/64-inch fractional drill size.

Why does 1/2-inch NPT use a hole larger than 1/2 inch?

The “1/2 inch” in 1/2-14 NPT is a nominal pipe-size designation, not the required pilot-hole diameter. The full designation identifies a tapered pipe thread with 14 threads per inch.

Select the pilot drill from the exact tap documentation or an appropriate NPT chart. Do not drill a 1/2-inch hole merely because “1/2” appears on the tap.

What drill size is listed for 1/2-14 NPS instead of NPT?

The cited comparison charts list 47/64 inch for 1/2-14 NPS or NPSF. They list 45/64 inch for directly tapped 1/2-14 NPT or NPTF holes without a taper reamer.

Both rows have 14 threads per inch, but NPS is straight or parallel while NPT is tapered. Confirm the complete tap marking before choosing the drill.

Does the 45/64-inch recommendation assume tapping without a taper reamer?

Yes, in the principal comparison-chart evidence reviewed here. Allied Machine and Fractory expressly associate 45/64 inch with direct NPT or NPTF tapping without a taper reamer.

That makes 45/64 inch a supported general answer for the documented direct-tapping method, not a universal initial drill size for every preparation process. If taper reaming is specified, obtain the drilling and reaming dimensions for that process.
